Description
ANALOG & DIGITAL DUAL MODES

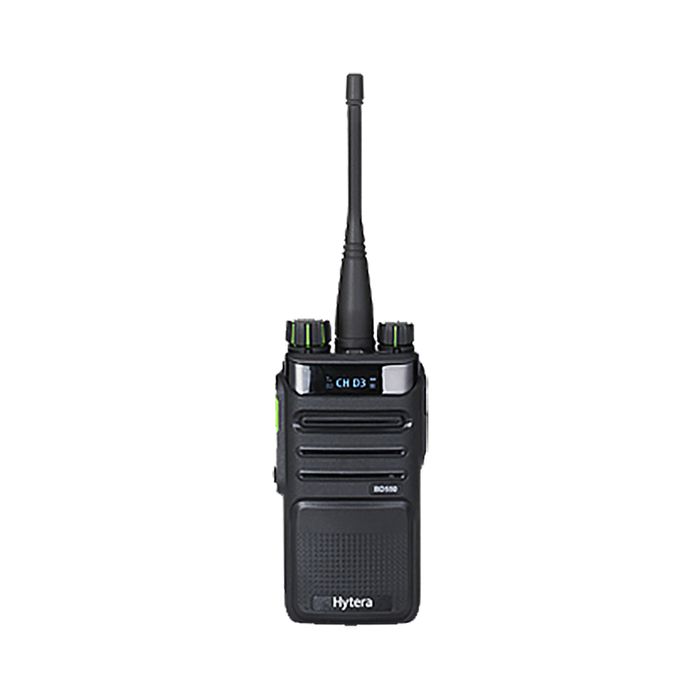

BD55X can support both analog and digital modes on the same hardware. You can switch between two operation modes easily and it helps you to communicate with analog radios.
EXTENDED TALK RANGE
Based on Hytera innovative technology, your talk range is extended.
CLEAR VOICE
Excellent audio quality comes from the DMR digital technology, which makes communication more reliable.
RELIABLE AND DURABLE
BD50X/BD55X is compliant with MIL-STD-810 G and IP54.
Specification
General
| Frequency Range |
UHF:400-470 MHz VHF:136-174 MHz |
| Channel Capacity |
BD50X: 48, BD55X: 256 |
| Zone Capacity |
BD50X: 3, BD55X: 16 |
| Channel Spacing | 25/12.5KHz |
| Operating Voltage | 7.2V |
| Display |
BD50X without display BD55X with display (0.91'') |
| Battery |
1500mAh (Li-Ion) 2000mAh (Li-Ion) |
| Battery Life (5/5/90) |
Analog/Digital: 16/22 hours (2000mAh) |
| Weight |
BD50X: 240g, BD55X: 250g (With AN0435W09 and BL1506) |
| Dimensions |
BD50X: 108×54×28mm BD55X: 110×59×30mm |
| Frequency Stability |
±0.5ppm |
| Antenna Impedance |
50Ω |
Transmitter
| RF Power Output |
VHF High power: 5W VHF Low power: 1W UHF High power: 4W UHF Low power: 1W |
| FM Modulation |
11K0F3E @ 12.5KHz 16K0F3E @ 25KHz |
| 4FSK Digital Modulation |
12.5KHz Data Only: 7K60FXD 12.5KHz Data & Voice: 7K60FXW |
| Conducted/Radiated Emission |
-36dBm <1GHz, -30dBm >1GHz |
| Modulation Limiting |
±2.5KHz @ 12.5KHz ±5.0KHz @ 25KHz |
| FM Hum & Noise |
40dB @ 12.5KHz 45dB @ 25KHz |
| Adjacent Channel Power |
60dB @ 12.5KHz, 70dB @25KHz |
| Audio Response | +1~ -3dB |
| Audio Distortion |
≤3% |
| Digital Vocoder Type | AMBE++ |
| Digital Protocol |
ETSI-TS102 361-1,-2,-3 |
Receiver
|
Sensitivity (Digital) |
0.22μV / BER 5% |
|
|
Sensitivity (Analog) |
0.22μV (Typical) (12dB SIN AD) 0.4μV (20dB SIN AD) |
|
|
Adjacent Selectivity
|
60dB @ 12.5KHz/70dB @ 25KHz |
|
|
Spurious Response Rejection
|
70dB @ 12.5/25KHz |
|
|
Inter-modulation
|
65dB @ 12.5/25KHz |
|
|
Hum & Noise |
40dB @ 12.5KHz 45dB @ 25KHz |
|
|
Rated Audio Power Output |
0.5W | |
|
Rated Audio Distortion |
≤3% |
|
|
Audio Response |
+1 ~ -3dB |
|
|
Conducted Spurious Emission |
<-57dBm |
Environmental
|
Operating Temperature |
-30°C~ +60°C |
|
Storage Temperature |
-40°C~ +85°C |
|
ESD |
IEC 61000-4-2 (Level 4) ±8kV (Contact) ±15kV (Air) |
|
Dustproof & Waterproof |
IP54 Standard |
|
Humidity |
Per MIL-STD-810 G Standard |
|
Shock & Vibration |
Per MIL-STD-810 G Standard |
