[ Radio & Communications ] - HANDY TALKY - HYTERA

Description

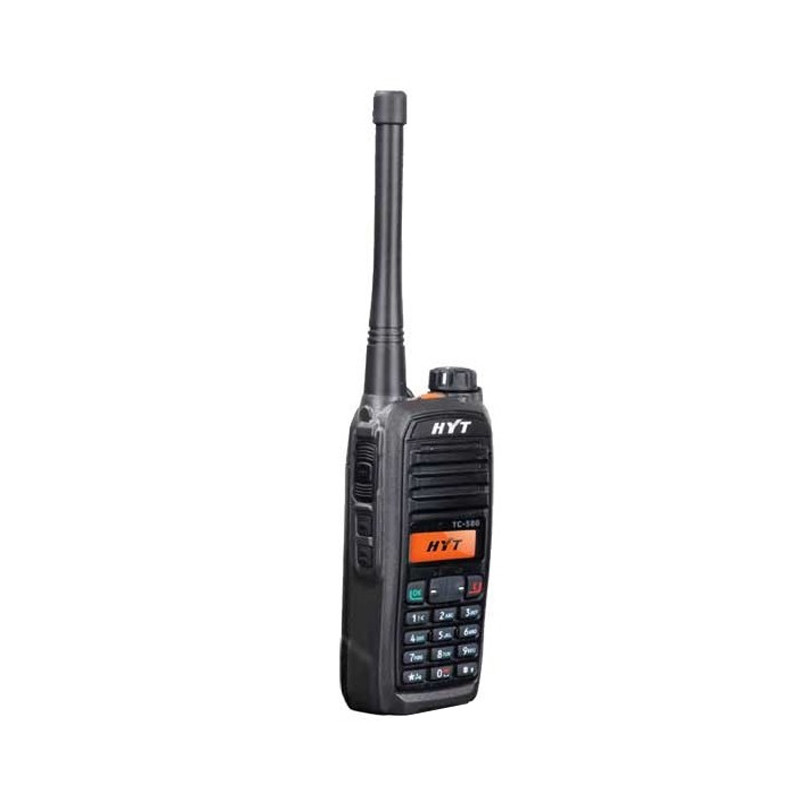

Combining efficiency and productivity, the Hytera TC-580 is the best choice for commercial and industrial users. With it’s innovative LCD design, numeric keypad, wideband coverage, 256 channels, and manual programming, the TC-580 integrates cutting-edge analog technologies and meets the needs of conventional communication.

Specification

General

Frequency Range

VHF: 136-174MHz, 350-390MHz, 400-470MHz

Channel Capacity

256

Channel Spacing

25/12.5 KHz

Operating Voltage

7.4V DC

Battery

1650mAh Li-Ion

Battery Life (5-5-90 duty cycle)

12 hours

Operating Temperature

-13°F to +149°F (-25°C to +65°C)

Dimensions (H x W x D)

4.6" x 2.1" x 1.41" (117 x 53 x 36mm)

Weight

10.12 ounces (287 grams)

Frequency Stability

±2.5ppm

Antenna Impedance

50Ω



Receiver

Sensitivity

≤0.25/0.28 uV

Selectivity

70/50dB

Intermodulation

60dB

Spurious Response Rejection

70dB

Signal to Noise

40/35dB

Rated Audio Power Output

1W

Rated Audio Distortion

≤5%



Transmitter

RF Power Output

VHF: 5W/1W UHF: 4W/1W

Spurious and Harmonics

-36dBm (< 1GHz); -30dBm (> 1GHz)

Modulation

16K ? F3E/8K ? F3E

FM Noise

≥40/35dB

Audio Distortion

≤5%
