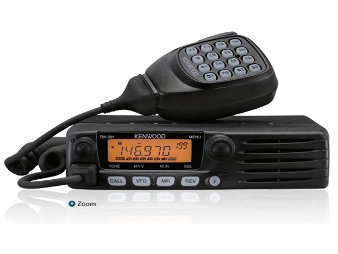

Description
-
RUGGED, COMPACT CONSTRUCTION
-
HIGH POWER OUTPUT (65 W)
-
ALPHANUMERIC LCD AND ILLUMINATED KEYPAD
-
IMPRESSIVE FRONT SPEAKER
-
MEMORY NAME FUNCTION
-
200 MEMORY CHANNELS PLUS 1 CALL-CHANNEL
-
MULTIPLE SCAN FUNCTIONS
-
CTCSS & DCS ENCODER/DECODER
Specification
General
| Frequency Range | TX | 144 – 148 MHz |
|---|---|---|
| RX | 136 - 174 MHz | |
| Mode | F3E (FM) | |
| Power Requirement | 13.8 V DC ±15 %, negative ground | |
| Curent Drain | Transmit | Less than 14 A (High), less than 8 A (Low) |
| Receive | Less than 1 A | |
| Operation Temperature Range | -20 °C ~ +60 °C | |
| Antenna Impedance | 50 Ω | |
| Microphone Impedance | 600 Ω | |
| Frequency Tolerance | ±2.5 ppm (-20 °C ~ +60 °C) | |
| Dimensions (W x H x D), (Projections included) |
160 x 43 x 126 mm 161 x 43 x 170.5 mm |
|
| Weight | 1.13 kg | |
Transmitter
| RF Power Output Hi / Lo | 65 W / 25 W | |
|---|---|---|
| Modulation | Variable reactance modulation | |
| Maximum Frequency Deviation | Wide: ±5 kHz, Narrow: ±2.5 kHz | |
| Modulation Distortion | Less than 3 % (300 Hz - 3 kHz) | |
Receiver
| Circuitry | Double super heterodyne | |
|---|---|---|
| Intermediate | 1st IF | 49.95 MHz |
| 2nd IF | 450 kHz | |
| Sensitivity (12 dB SINAD) | Less than 0.18 μV (Narrow: less than 0.22 μV) |
|
| Squelch Sensitivity | Less than 0.1 μV | |
| Selectivity | -6 dB | More than 12 kHz (Narrow: more than 10 kHz) |
| -60 dB | Less than 30 kHz (Narrow: less than 24 kHz) | |
| Audio Output Power | More than 2 W (5 % distortion) | |
