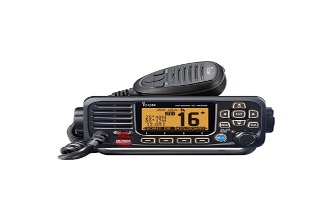

[ Radio & Communications ] - Mobile Radio - RIG ICOM

Description

  • AquaQuake™ draining function
  • Built-in Class D DSC with a CH70 dedicated receiver
  • Common NMEA interface for external GPS/NAV connection
  • Tag scan and favorite channel functions
  • Dual/tri-watch function for monitoring CH16 and/or call channel
  • Priority scan function
  • Display and keypad backlighting
  • Weather channel with weather alert
  • 3-digit or 4-digit channel display selectable

Specification

General

Frequency Range
  Tx
  Rx
  Ch. 70

156.025–161.600MHz
156.050–163.275MHz
156.525MHz
Usable channels USA, CAN, INT, WX channels
Type of emission 16K0G3E (FM)
16KOG2B (DSC)
Power supply requirement 13.8V DC nominal (11.7–15.9V DC)
Current drain (at 13.8V DC)
  Tx 25W output
  Rx AF max.

5A
1A

Operating temperature range

-20°C to +60°C; -4°F to +140°F

Antenna Impedance 50Ω (SO-239)
Dimensions (W×H×D)
(Projections not included)
156.5 × 66.5 × 110.1 mm;
6.2 × 2.6 × 4.3 in
Weight (approx.) 730g; 1.6lb
NMEA formats
  In
  Out

RMC, GGA, GNS, GLL, VTG
DSC, DSE, RMC, GSA, GSV



Transmitter

Output power (at 13.8V DC)

25W, 1W

Max. frequency deviation ± 5 KHz
Frequency tolerance ±5 ppm
Spurious emissions Less than –70dBc (High)
Less than –56dBc (Low)



Receiver

Sensitivity
  Main
  DSC

–13dBμ typ. (12dB SINAD)
–5dBμ emf typ. (1% BER)
Squelch sensitivity Less than –10dBμ
Adjacent channel selectivity
  Main
  DSC

More than 70dB
More than 73dBμ emf (1% BER)
Spurious response
  Main
  DSC

More than 70dB
More than 73dBμ emf (1% BER)
Intermodulation
  Main
  DSC

More than 70dB
More than 68dBμ emf (1% BER)
Hum and noise More than 40dB
Audio output power
(at 10% distortion, 4Ω load)
4.5W typical
