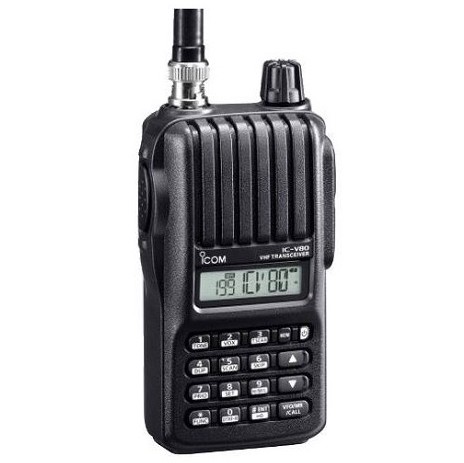

Description
- WX channel and weather alert function (USA version only)
- Program, memory, skip, priority and tone scans
- Power save function
- BNC type antenna connector
- Automatic repeater function (USA version only)
- 1750Hz tone for European repeater access (IC-V80E only)
- TOT (time out timer) setting
- Repeater lockout and busy channel lockout
- PC programmable with optional CS-V80
- Transceiver-to-transceiver cloning (Optional)
- Direct keypad frequency entry
- DTMF autodial memories
- Auto power off
- LCD backlight
- Wide/narrow channel spacing
Specification
General
| Frequency Coverage |
IC-V80 (U.S.A.) Tx: 144 - 148 MHz Rx: 136 – 174 MHz
IC-V80E (Europe) Tx?Rx: 144 - 146 MHz |
| Current drain (approx.) |
TX High: 1.4 A (typ.) RX Max. audio/Stand-by: 310 mA with Internal speaker (typ.) 180 mA with External 8 Ω speaker (typ.) 65 mA (typ.) during stand-by 20 mA (typ. 9 during Power save |
| Dimensions (W×H×D) (Projections not included) |
52.2×111.8×22.3 mm (with BP-264) |
| Weight | 140 g; 4.9 oz (without Battery pack) |
Transmitter
| Output power (at 7.5V) | 5.5/2.5/0.5 W (Hig/mid/low) |
| Max. frequency deviation | ±5.0 kHz/±2.5 kHz (Wide/Narrow) |
| Spurious emissions | Less than -60B |
| Ext. microphone connector | 3-conductor 2.5(d) mm (1/10″)/2.2 kΩ |
Receiver
| Sensitivity | 0.14 μV typ. (at 12 dB SINAD) |
| Squelch sensitivity | 0.1 μV typ. (at threshold) |
| Selectivity | 70 dB/50 dB typ. (Wide/Narrow) |
| Intermodulation | 70 dB/65 dB typ. (Wide/Narrow) |
| Spurious and image rejection | 75 dB (typ.) |
| Audio output power |
Internal SP: 750 mA typ. (16 Ω load) External SP: 450 mW typ. (8 Ω load) |
| External speaker connector | 3-conductor 3.5(d)mm (1/8″)/8 Ω |
